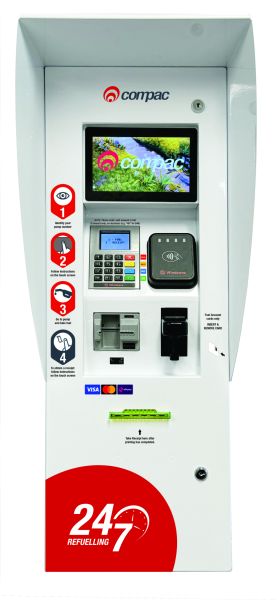

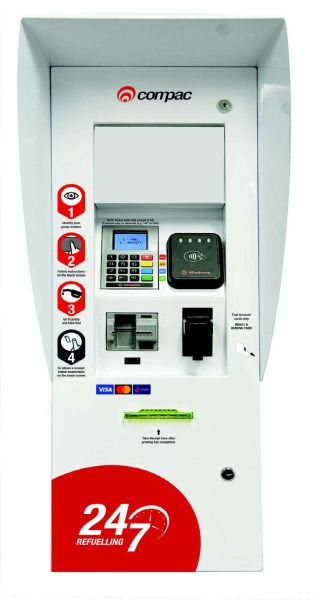

Easy to use and built from stainless steel, the Compac PT1 Payment Terminal is robust and designed to withstand the harshest conditions.

It is ideal for any Unattended Refuelling site.

Compac Payment Terminals offer great versatility in their functionality. The PT1 payment terminal has the ability to connect to:

With the Payment Terminal, authorisation of fuel pump can also be made at the unit with:

  • Online Account Card
  • All major Credit Cards
  • Debit Cards
  • Paywave

Detailed Specifications:

Model PT1
 Credit / Debit / EFTPOS PINPAD

 WINDCAVE SKP200 PINPad

 Credit / Debit / EFTPOS Cardreader WINDCAVE SCR200 Card Reader
 Card Reader for White Cards Magtek Card Reader especially designed for outdoor, unattended fuel sites
Printer

Thermal printer specifically designed for outdoor unattended use with presenter designed to prevent jamming. Paper roll dimension 80mm wide x 295mm long

Authorisation

Account Cards with offline functionality

All major Credit, Debit and EFTPOS Cards

Paywave / QR Code / Bar Code reader

CompacPay Mobile Payment App

Power Supply

200 - 240V, 3.4 amps

UPS, battery backed, enables customers to get receipts in event of power failure

Provides power and surge protection

Supported Fuel Pumps

Compac, Gallagher, Gilbarco, Wayne

Communications

3G / 4G / 5G or Ethernet

Operating Temperature

-25°C to 55°C with internal thermostat environmental control for optimal low temperature operation

Tank Gauging Interface

Colibri, Fafnir, Veeder-Root with 4-20ma probe (max 2)

Construction

Stainless Steel

Mounting Options

Wall, tank or pedestal

Compliance

PCI & NMI Approvals
