Smart Dispenser
Smart Dispenser
Smart Dispenser

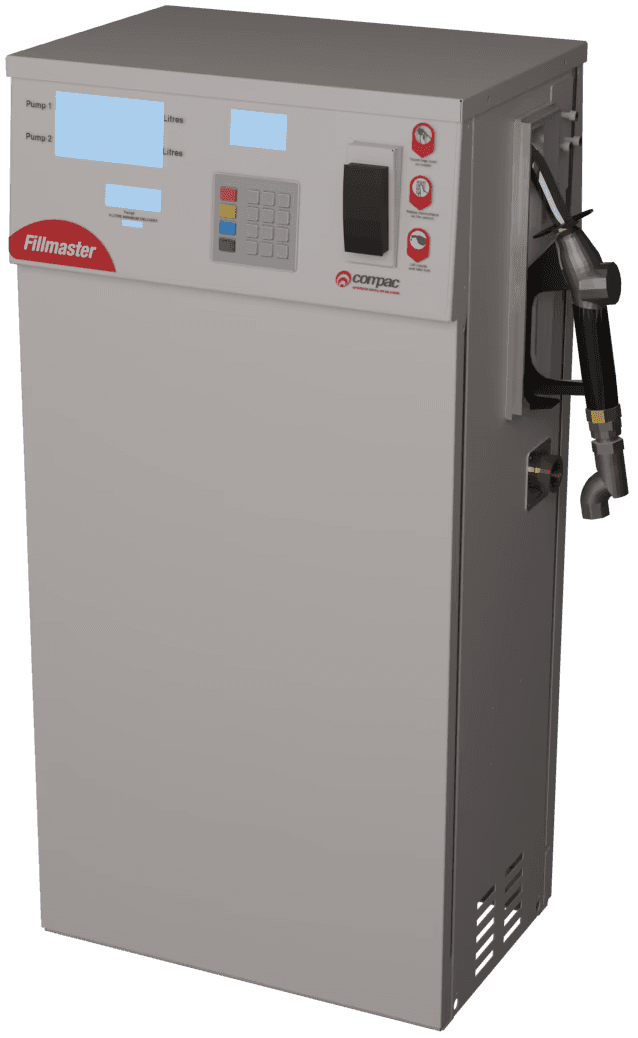

The Compac FillMaster range of smart dispensers includes built-in controller features and functionality offering a unique and cost effective fuel management solution for smaller sites.
Features:
Easy to set up
Access to CompacOnline
Stand-alone pump (up to 2 hoses)
Authorisation options
Tank gauging options
Supports up to 32 pumps via pump comms (Compac, Gilbarco, Dart)
Architecture
Architecture
Architecture
The FillMaster takes a different approach to fuel site management by building the controller directly into the dispenser.
Rather than relying on a separate forecourt controller, each FillMaster unit handles its own authorisation and transaction logic, keeping the system simple and the footprint small.
For sites with multiple dispensers, a Compac Gateway ties everything together, connecting up to 32 pumps to the CompacOnline fuel management platform.
Tank gauging can also be integrated at this point, giving you full site visibility without the complexity or cost of a traditional controller-based setup.
Compac Gateway connects your forecourt with the CompacOnline fuel management system.
It is a central point where external dispensers can be authorised for fuel transaction. It also allows tank gauging connection.
It is a simpler and more cost-effective solution than a fully optioned forecourt controller.
Compac Gateway connects your forecourt with the CompacOnline fuel management system.
It is a central point where external dispensers can be authorised for fuel transaction. It also allows tank gauging connection.
It is a simpler and more cost-effective solution than a fully optioned forecourt controller.
Configurations

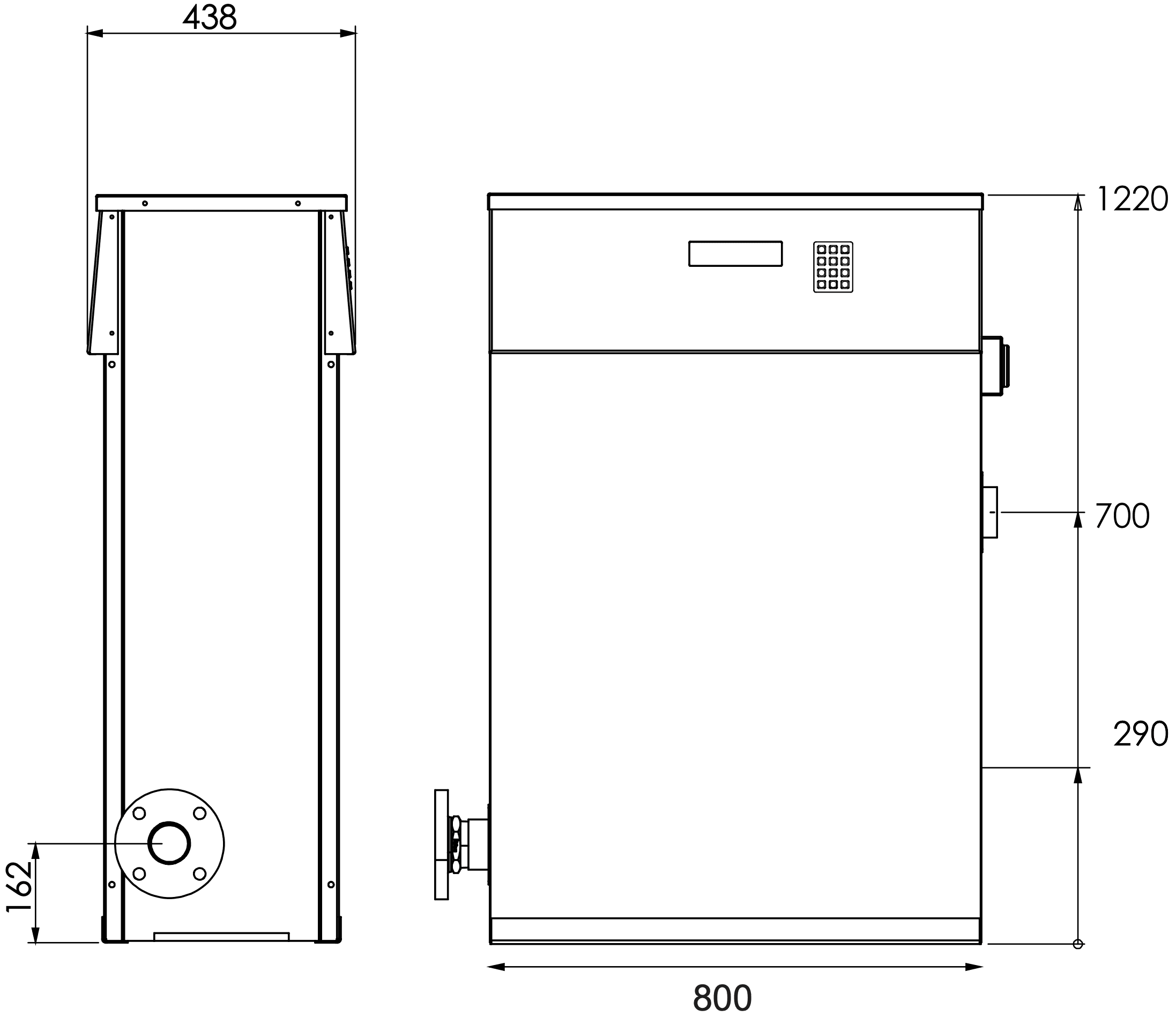

Dimensions
Documentation
Configurations
Model & Flow Rate
Pump
Dispenser
Product Options
Hoses
Hi/Lo Switch
Preset
Pylon or Himast
MR80
1 (Diesel)
1
MR160
1 (Diesel)
1
MR400
1 (Diesel)
1
MMR40
2 (Diesel)
2
MMR80
1 (Diesel)
2
MMR160
1 (Diesel)
2
MMR40/40
2 (Diesel)
2
MMR40/80
2 (Diesel)
2
MMR80/160
1 (Diesel)
2
MMR80/400
1 (Diesel)
2
MMR160/400
1 (Diesel)
2
Find out more
